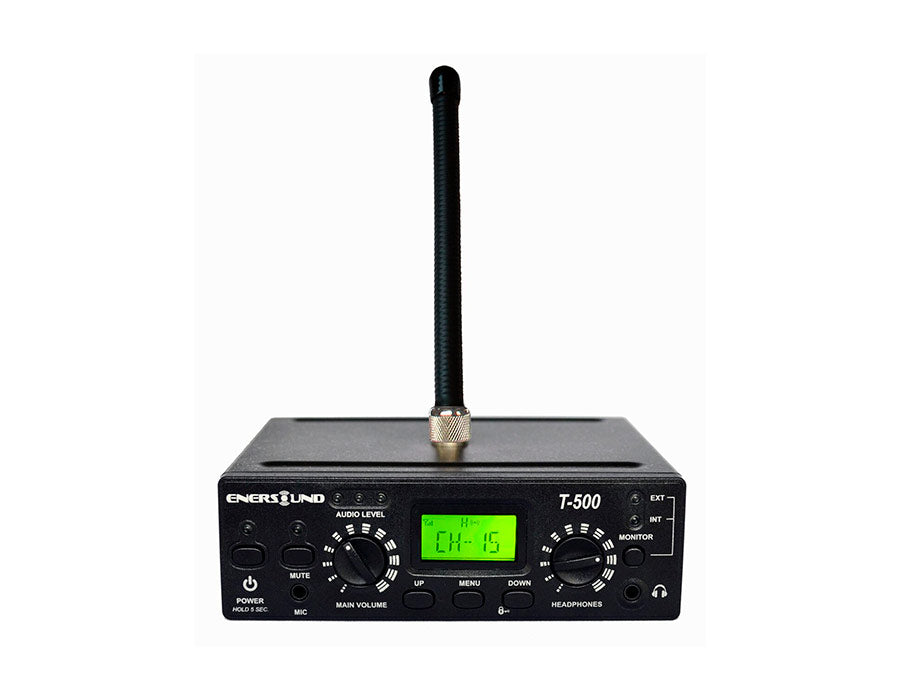

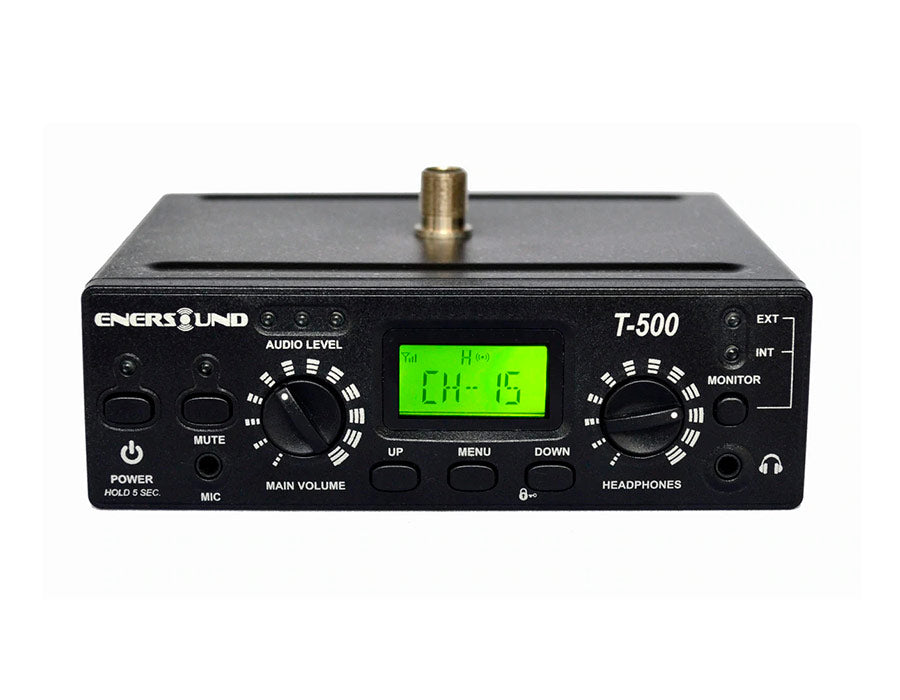

Enersound T-500 FM Multi-Channel Assistive Listening Transmitter 72-76 MHz (Limited Lifetime Warranty)
- Product SKU: T-500
- Dimensional Shipping Weight: 4.0 lb
- Category: Assistive Listening, Assistive Listening band (72-76MHz), FM Transmitters, FM Transmitters, Translation & Interpretation, Translation & Interpretation Transmitters
IMPORTANT: This transmitter will NOT work with regular car radios. If you need to broadcast audio to a parking lot you can check this solution that we carry.
Overview:
The Enersound T-500 transmitter is ideal for assistive listening and simultaneous translation applications. It features 3 main audio inputs that allow the direct connection of virtually any audio source, including a 3.5 mm jack for headset microphones, an XLR & ¼ inch combination jack with a selector for dynamic microphones, condenser microphones or line-level signals, and a RCA line auxiliary input. It also has a recording output and a 3.5 mm monitor headphone jack. It is compatible with most FM receivers working within the 72-76 MHz frequency band such us the Enersound R-120 receiver and others (See chart below)
Special Features for Language Interpretation:
For language interpretation, it has a unique integrated interpreter monitoring function. This feature allows interpreters to select an external incoming audio source and utilize a headset with microphone to listen to the source language without the need of an interpreter console or external headphone amplifier. Through the headphones’ volume control, interpreters can set the desired incoming audio level and the mute button allows them to momentarily silence their microphone for coughing or sneezing. For more advanced interpreting functions, it can also be utilized with the Enersound IC-12 multi-channel interpreter console or with any other interpretation platform with analog audio outputs.
Its LCD display allows to easily program the various useful functions, such as test tone, RF power level, display mode (frequencies or channel numbers corresponding to the Enersound R-120 receiver), channel lock.
Compatible with most FM receivers working in the 72-76MHz band including the following models:
Enersound: R-120
Williams Sound: PPA R37, PPA R37-8, PPA R38, PPA R35, PPA R38-8
Listen Technologies: LR-300-072, LR-400-072, LR-500-072, LR-5200-072 ,
LR-4200-072
Telex: SR-50, SR-400
Gentner: RX-1a, Digital 6, Digital 1, Digital 6 Plus.
|
Features:
The System Includes:
|
Used with:
Accessories:
|
Download
