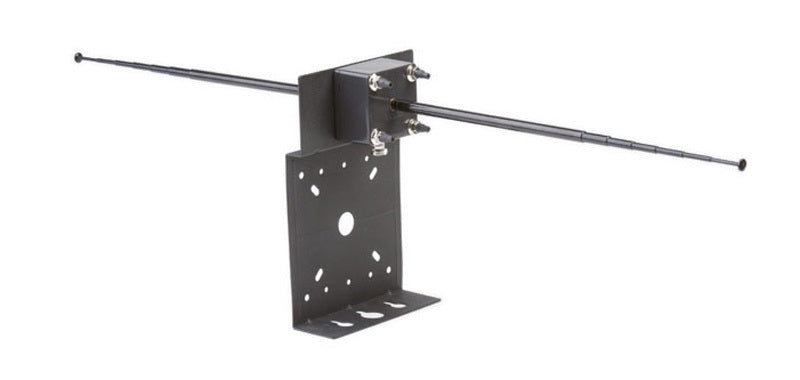

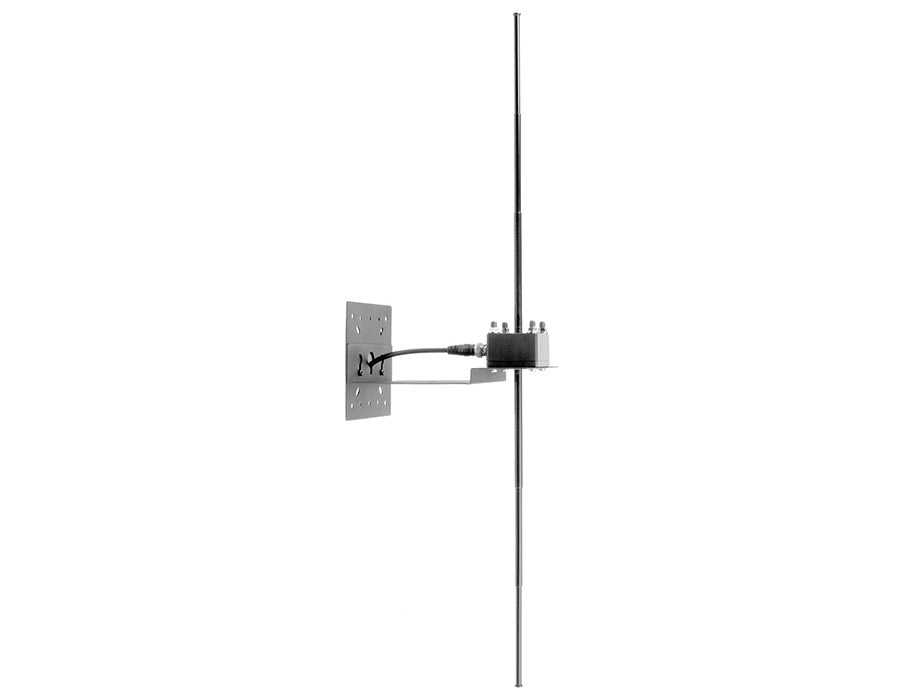

Dipole Antenna Kit with cable to connect Enersound T-500 Transmitter.
- Product SKU: LA-122-ENE
- Dimensional Shipping Weight: 0.1 lb
- Category: Translation & Interpretation, Translation & Interpretation - Accessories, Translation & Interpretation - Antennas
Dipole Antenna Kit with 25-foot coaxial cable to connect Enersound T-500 Transmitter. Extends coverage up to 1,000 ft.
A single solution for all your remote antenna needs. The kit contains antennas for both 72 MHz and 216 MHz systems. Monopole and dipole antenna options included. Mounting hardware enables you to attach the antenna to walls, on electrical boxes, on a horizontal surface (flat and inverse), inside a wall or ceiling. Kit contains components to configure several versions of an antenna and with 25 feet of coaxial cable.
Includes
- (1) Grounding Base
- (1) Mounting Bracket
- (1) Wall/Electrical Box Mounting Plate
- (1) Shorting Plate
- (1) Antenna Module
- (1) 25 ft. (7.6 m) Coaxial Cable (terminated with BNC connector on one end and a modified TNC connector on the other end to connect an ENERSOUND T-500 Transmitter
- (2) Telescoping Antennae (72 MHz)
- (2) Telescoping Antennae (216 MHz)
- (2) Flexible Antenna (72 MHz)
- (2) Flexible Antenna (216 MHz)
- (2) Hex Kep Nuts
- (2) Fiber Washer
- (4) Machine Screw (#8-32×3/4″)
- (4) Tapping Screw (#8-1/2″)
- (4) Dry Anchors
- (1) Owner’s manual
Highlights
- Includes both 72 MHz and 216 MHz antennas
- Monopole and dipole antenna options included
- Rigid and flexible radials are included
- All hardware to mount on a wall, on electrical boxes, on a horizontal surface (flat and inverse), inside a wall or ceiling is included
Dipole Antenna Kit with 25-foot coaxial cable to connect Enersound T-500 Transmitter. Extends coverage up to 1,000 ft.
A single solution for all your remote antenna needs. The kit contains antennas for both 72 MHz and 216 MHz systems. Monopole and dipole antenna options included. Mounting hardware enables you to attach the antenna to walls, on electrical boxes, on a horizontal surface (flat and inverse), inside a wall or ceiling. Kit contains components to configure several versions of an antenna and with 25 feet of coaxial cable.
Includes
- (1) Grounding Base
- (1) Mounting Bracket
- (1) Wall/Electrical Box Mounting Plate
- (1) Shorting Plate
- (1) Antenna Module
- (1) 25 ft. (7.6 m) Coaxial Cable (terminated with BNC connector on one end and a modified TNC connector on the other end to connect an ENERSOUND T-500 Transmitter
- (2) Telescoping Antennae (72 MHz)
- (2) Telescoping Antennae (216 MHz)
- (2) Flexible Antenna (72 MHz)
- (2) Flexible Antenna (216 MHz)
- (2) Hex Kep Nuts
- (2) Fiber Washer
- (4) Machine Screw (#8-32×3/4″)
- (4) Tapping Screw (#8-1/2″)
- (4) Dry Anchors
- (1) Owner’s manual
Highlights
- Includes both 72 MHz and 216 MHz antennas
- Monopole and dipole antenna options included
- Rigid and flexible radials are included
- All hardware to mount on a wall, on electrical boxes, on a horizontal surface (flat and inverse), inside a wall or ceiling is included
