JBL

Complete Portable JBL PA System

Product SKU: PAS-01
Dimensional Shipping Weight: 83.0 lb
Category: PA Systems, PA Systems - Speakers

Available: In Stock

$999.00

Description

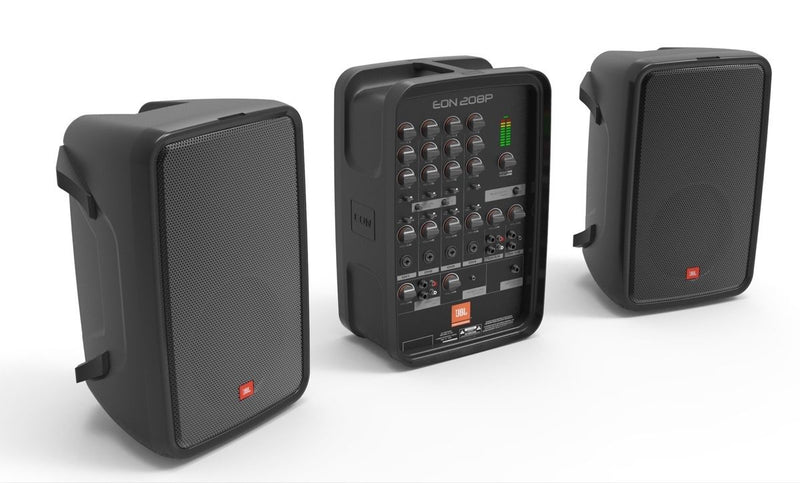

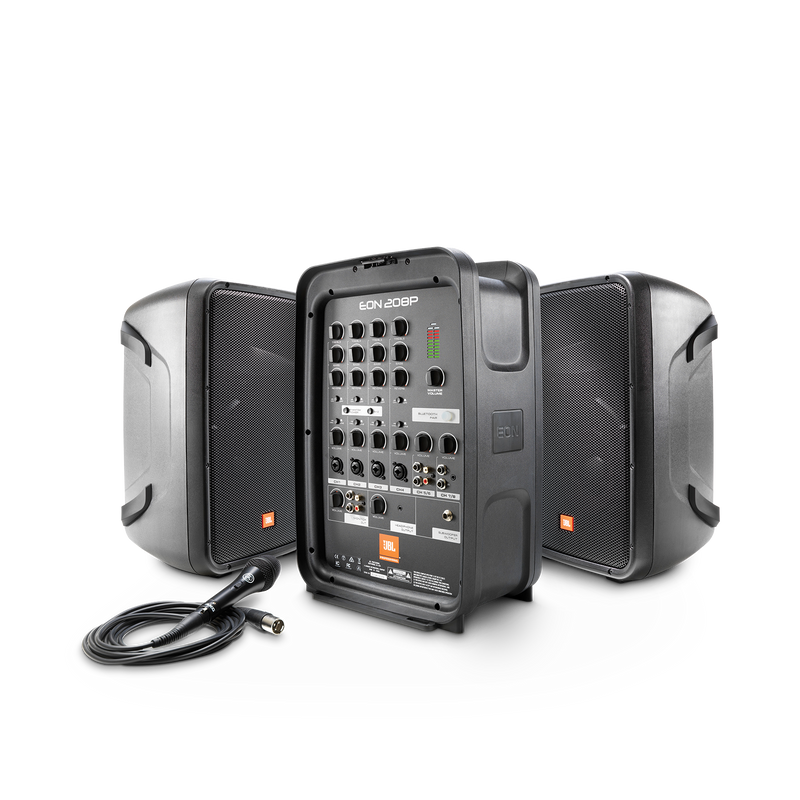

Get legendary sound quality with this all-in-one portable PA system, complete with an 8-channel mixer, Bluetooth audio and included AKG microphone. With a convenient suitcase-style design makes it easy to get great sound for performances, meetings and events. Includes two speaker stands.

Features:

Portable PA System with Pair 8" Speakers and Powered 8-Chanel Mixer with Bluetooth
System Type: (2) Portable 2-Way Full-Range Loudspeakers With Powered Mixer
Power Rating: 300 Watts (2 x 150 Watts)
Maximum SPL Output: 121 dB peak
Frequency Range (-10 dB): 60 Hz - 20 kHz
Frequency Response (+/-3 dB): 70 Hz - 18 kHz
AC Input 100-120 V, 220-240 V 50/60 Hz
Amp Design: Class D
Bluetooth Streaming
Output Connector: 2 x 1/4" TS (unbalanced) Amplifier Outputs

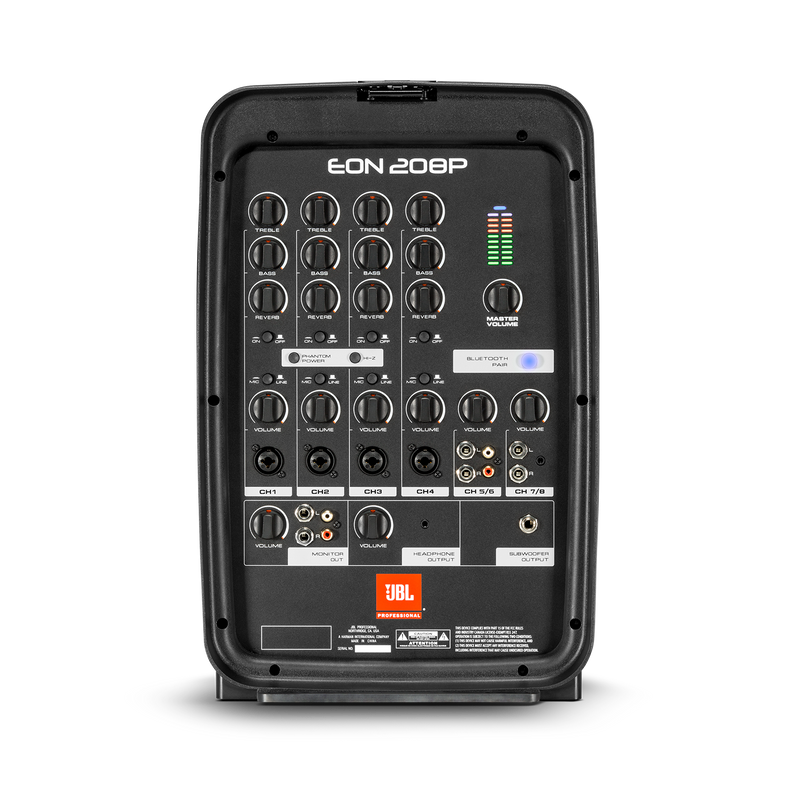

Channels:
- 1-4: XLR/1/4" Jack Combo Connectors
- 5-6: One pair of 1/4" balanced TRS jacks (stereo), and one pair of RCA jacks (stereo)
- 7-8: One pair of 1/4" balanced TRS jacks (stereo), and a 3.5mm stereo jack
Phantom Power: Mixer Output Connectors: Monitor Out: one pair of RCA jacks (stereo), and one pair of 1/4" balanced TRS jacks (stereo)
- CH1 and CH2 have phantom power control and share the same selection switch
- Hi-Z Selection CH3 has a Hi-Z selection switch used for guitar signal input
Headphone Out: 3.5mm stereo jack
Subwoofer Out: 1/4" balanced TRS jack
Treble/Bass EQ: Per-channel high- and low-shelf filters; +/- 12dB cut and boost
System Limiter: On-board DSP limiting
LF Driver: 1x JBL 8" (203mm) woofer
HF Driver: 1x 1" Neodymuim black aluminum dome tweeter
Coverage Pattern: 100° horizontal x 60° vertical
Crossover Frequency: 2 kHz
Crossover Type: 2-way passive network, 2nd order filters (12dB cutoff per octave)
Enclosure: Polypropylene
Suspension/Mounting: 36 mm pole socket
Handles: One on top
Speaker Grille: Powder-coated perforated steel
Product Dimensions (H x W x D): 22.6" x 30.5" x 15.7" inches
Product Weight: 38.8 Lbs.

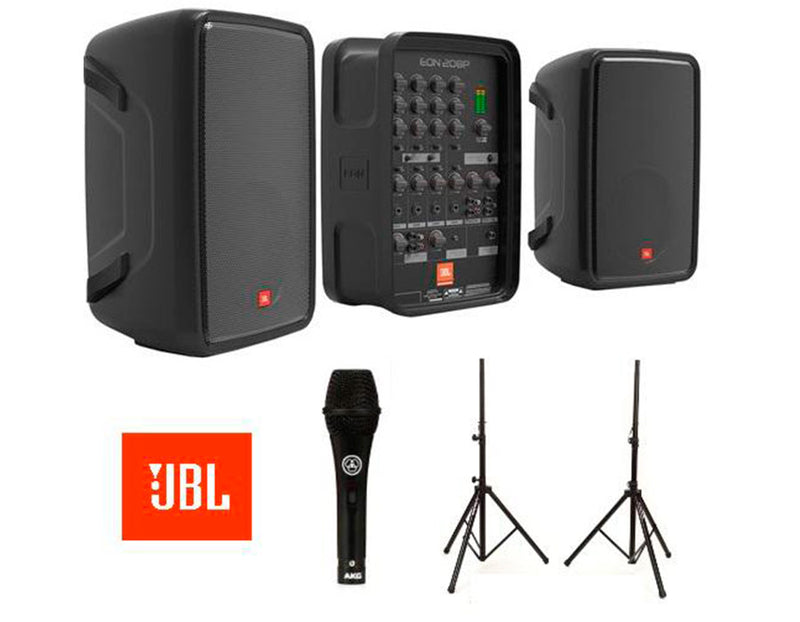

Includes:

(1) 300 W eight-channel powered mixer

(2) two-way full range loudspeakers

(1) AKG handheld microphone

(2) Speaker Cables

(1) Power Cable

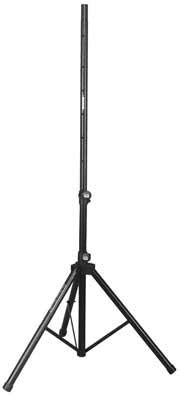

(2) speaker stands with carrying bag

NOTE: The flat shipping rate is only valid for the continental US, for Alaska, Hawaii, Puerto Rico and APOs please call us for a shipping quote.
